Hyperion Reporting and Analysis Architecture

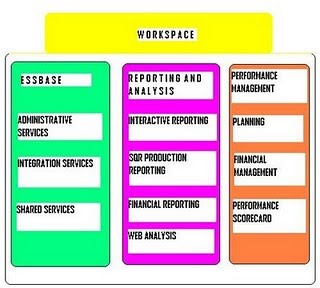

Various components of Hyperion (source):





Workspace is a common window to view the contents of all Hyperion components.
Hyperion Reporting and Analysis:

One zero-footprint Web-based thin client provides users with access to content:
● Financial reporting for scheduled or on-demand highly formatted financial and operational reporting from most data sources including Hyperion Planning – System 9 and Hyperion Financial Management – System 9
● Interactive reporting for ad hoc relational queries, self-service reporting and dashboards against ODBC data sources
● SQR Production reporting for high volume enterprise-wide production reporting.
● Web analysis for interactive ad hoc analysis, presentation, and reporting of multidimensional data.

Hyperion Reporting and Analysis Architecture




Client: The client tools consist of

Workspace: It is a DHTML Zero footprint web client and provide the user interface for viewing and interacting with the reports created using Authoring studios.
Authoring Studios: These are the client interfaces to create the reports and includes-

(a) Hyperion Interactive Reporting Studio: Windows client where you can connect to different data sources including the flat files and build very interactive presentation reports like reports in simple tabular format, pivot reports, graphs and charts with drill anywhere feature which means that you don’t have to define the hierarchy or drill path and slicing and dicing and Dashboards with many features like hyperlinks to the details reports and embedded browser which can be used to view any other web application to open within the Dashboards.

(b) Hyperion Financial Reporting Studio: Windows client where you can connect to the multidimentional data sources and create highly formatted financial reports by simply dragging and dropping rows and columns and defining page breaks.

(c) Hyperion SQR Reporting Studio: Windows client where you can connect to wide range of data sources and produce high volume pixel perfect operational reports and can be scheduled.

(d) Hyperion Web Analysis: Java applet where you can connect to different data sources using JDBC and build interactive reports and dashboards.
Smart view for office: This is a tight integration with Microsoft Office tools where ou can do analysis like drill downs, keep only and remove only options, POV manager, data refresh, copying data cells and pasting to MS Word and Powerpoint which automatically gets refreshed if the data changes in the source etc. There is one more component in smart wiew which is Hyperion Visual Explorer(HVE), where again you can view the data in presentable interactive graphs and charts.

Application Layer: It consists of two parts :

1. Web Tier: It consists of two parts (a) Web server- to send and receives content from the web clients. (b) Application server- it is a J2EE application server.
Web server and application server are connected using an HTTP connector.
The web Tier hosts the web applications like workspace, web analysis, interactive , SQR and financial reporting applications.

2. Services Tier: It contains services and servers that controls the functionality of the web applications and clients. Core services handles repository information, authorization, session information, documents publication.
